Perkins柴油機如何檢查氣門間隙

2016-5-8 15:34:24

Perkins柴油機如何檢查氣門間隙

How to check the tappet clearances

Special tools

Descript ion

Engine turning tool

Tappet clearances


Part number

CH11148


Inlet

Exhaust


0,38 +/- 0,08 mm (0.015 +/- 0.003 in)

0,76 +/- 0,08 mm (0.030 +/- 0.003 in)


1



2


The tappet clearance is measured between the rocker levers  and the top of the valve bridge pieces. The

operation must be done with the engine cold and stopped. Refer also to "How to check/adjust the electronic

unit injectors" on page 42.

1  Remove the rocker cover.

2  Remove the top bolt (A1) from the cover (A2) on the flywheel housing and slacken the other cover bolt to

allow the cover to open. The top bolt (A1) is the timing bolt.

Caution: If a customer-fitted speed sensor is fitted to the flywheel housing, it must be remov ed before the

engine turning tool c an be inserted.

3  Remove the plug (A3) from the timing bolt location in the flywheel housing and fit the timing bolt.

Note: There are two locations for the timing bolt, one at each side of the flywheel housing. Use the location

which is the most convenient.

4  Insert the engine turning tool, CH11148, into the flywheel housing through the aperture behind the cover

rotation (anti-clockwise when viewed on the flywheel) until the timing bolt engages with the threaded hole in

the flywheel. The piston of number 1 cylinder is now at TDC (top dead centre).

Caution: If the flywheel is turned past the threaded hole, the flywheel must be turned in the opposite direction

for approximately 45 degrees and then back in the normal direction of rotation until the timing bolt engages

with the threaded hole. This is to eliminate backlash.



User’s Handbook, TPD1516E, Issue 1

39


4


2800 Series


5  Check the inlet and exhaust valves of the number 1 cylinder. If they are fully closed the piston is on its

compression stroke and the rocker levers can be moved by hand. If the rocker levers can not be moved

because the valves are slightly open, the piston is on its exhaust stroke. If it is on its exhaust stroke, withdraw

the timing bolt and turn the flywheel a further 360 degrees in the normal direction of rotation so that the number

1 cylinder is set to TDC on its compression stroke, then insert again the timing bolt.

6 Before each set of tappet clearances is adjusted, ensure that the roller of the rocker lever is fully against the

camshaft lobe.

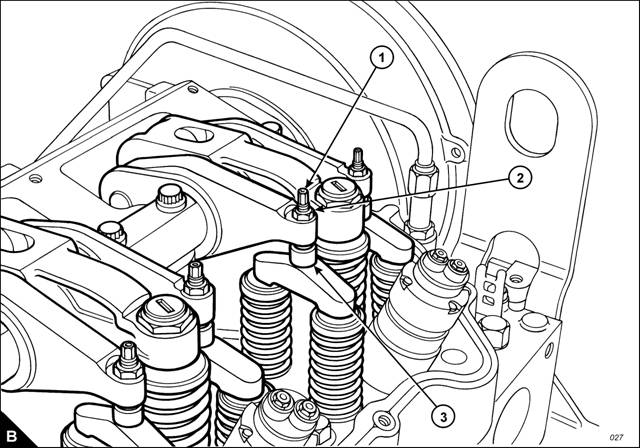

7 Use a set of feeler gauges, inserted at the position shown (B3) between the valve bridge piece and the rocker

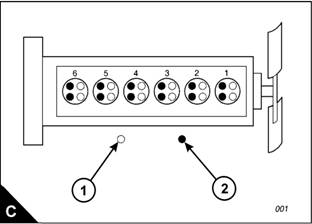

lever button, to check the tappet clearances for the inlet valves (C1) on cylinders 1, 2 and 4. Adjust the

clearances if necessary. Check the tappet clearance for the exhaust valves (C2) on cylinders 1, 3 and 5, and

adjust the clearances if neces sary.

Notes:

Move each valve bridge piece before the feeler gauge is inserted to reduce the effect of the oil film.

During the procedure, ensure that the feeler gauge is fully inserted

8  After each unit has been adjusted, tighten the lock nut (B2) of the adjustment screw (B1) to a torque of

30 ± 4 Nm (22 ± 3 lbf ft) 3 ± 0,4 kgf m.

9  Withdraw the timing bolt and rotate the flywheel by 360 degrees so that the number 6 piston is at TDC on

its compression strok e. Insert again the timing bolt into the threaded hole.


Continued



40


User’s Handbook, TPD1516E, Issue 1


2800 Series

10  Check the tappet clearances for the inlet valves (C1) on cylinders 3, 5 and 6. Adjust the clearances if


4

necessary. Check the tappet clearances for the exhaust valves (C2) on cylinders 2, 4 and 6, and adjust the

clearances  if necessary.

11  After each unit has been adjusted, tighten the lock nut of the adjustment screw to a torque of 30 ± 4 Nm

(22 ± 3 lbf ft) 3 ± 0,4 kgf m.

12  Check again the tappet clearances for all six cylinders.

13  Fit the rock er cover. Remove the engine turning tool and the timing bolt and fit the cov er to the flywheel

housing.

14  Fit the plug to the timing bolt location.


User’s Handbook, TPD1516E, Issue 1
