John Deere約翰迪爾強鹿柴油機氣缸套的拆卸檢查與標(biāo)準(zhǔn)值參數(shù)

IMPORTANT: If liner pitting has occurred, checkcondition of coolant.

NOTE: When installing reusable liners, rotate 90° fromoriginal position. The liners should be deglazedand ring sets installed in pistons.

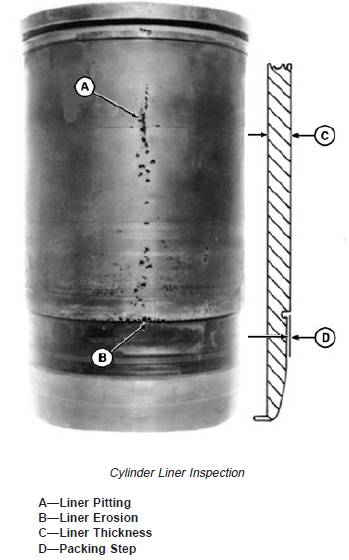

1. Inspect exterior length of liner for pitting (A). Checkpacking step for erosion (B). If pitting or erosion isobserved, measure depth of pits with a fine wire orneedle. Replace piston and liner if:

· Depth of any pit is one-half or more of liner thickness(C).

· Depth of erosion is one-half or more of the packingstep (D).

Specification

Cylinder Liner—Thickness 6.23—6.89 mm(0.25—0.27 in.)

Cylinder Liner Packing Step—Dimension 2.02—2.29 mm(0.08—0.09 in.)

2. Visually inspect liner ID. Replace piston and liner if:

· The crosshatch honing pattern is not visible immediately below the top ring turn-around area for turbocharged engines.

· The hone pattern is not visible all the way around the liner in over 75 percent of the ring travel area for naturally aspirated engines.

· Liners are pitted or contain deep vertical scratches that can be detected by the fingernail.

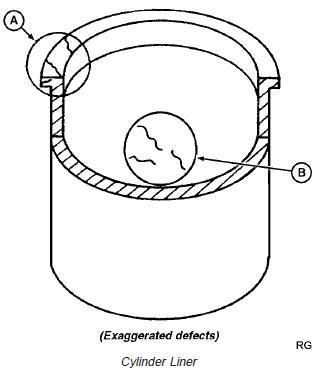

3. Carefully examine liner for signs of fatigue, such as fine cracks in the flange area (A) and cracks in the ring

travel area (B).

NOTE: Inspect block for cracks or erosion in the O-ring packing areas. (See INSPECT AND CLEAN CYLINDER BLOCK later in this group.)

A—Flange Area

B—Ring Travel Area

John Deere約翰迪爾強鹿柴油機缸套的清洗方法

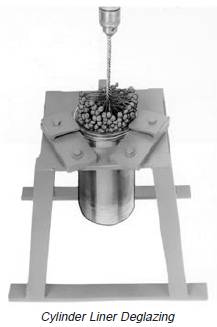

1. Secure cylinder liner in a holding fixture. (See DealerFabricated Service Tools, Section 05, Group 190 for assembly of holding fixture.)

2. Use D17004BR Flexible Cylinder Hone to deglazecylinder liner.

NOTE: Use honing oil along with flex hone when deglazing liners.

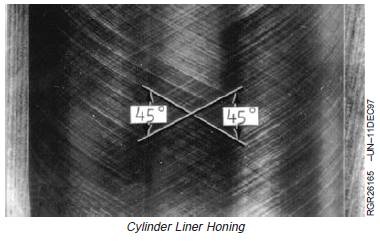

3. Use D17004BR Hone according to instructions supplied with tool to obtain a 45° cross-hatch pattern.Thoroughly clean liners after deglazing. See CLEAN CYLINDER LINERS earlier in this group for proper cleaning procedures.
