John Deere約翰迪爾強鹿柴油發動機空氣壓縮機零件圖冊
詳細描述
空氣壓縮機

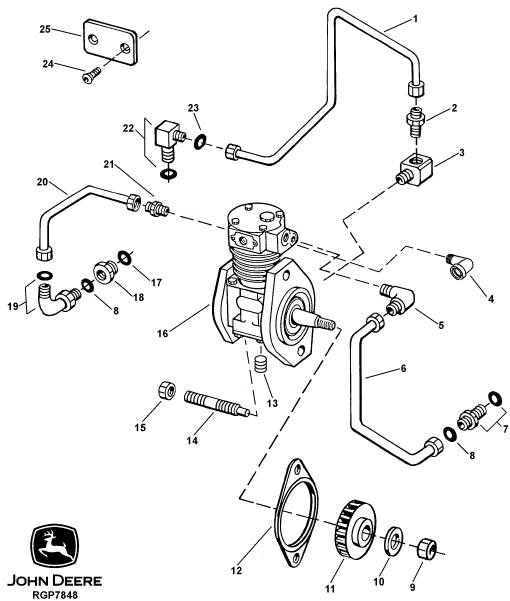

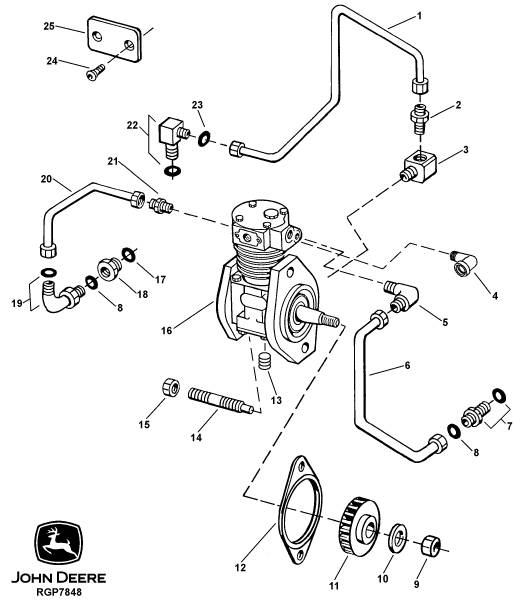

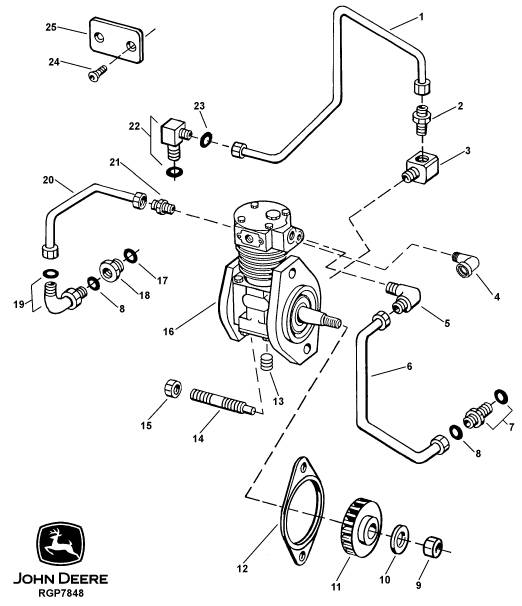

John Deere約翰迪爾強鹿6068 6.8L柴油發動機空氣壓縮機零件圖冊
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 RE500643 OIL LINE 1 X X X
2 R63604 FITTING 1 X X X
3 R135261 ELBOW FITTING 1 X X X
4 15H197 ELBOW FITTING 1 X X X 1/8"
5 R126287 ELBOW FITTING 1 X X X
6 RE70323 LINE 1 X X X
7 38H5003 ADAPTER 1 X X X
8 T77857 O-RING 2 X X X
9 14H1083 NUT 1 X X X 5/8"
10 24H1368 WASHER 1 X X X 21/32" X 1-5/16" X 0.090"
11 R120634 GEAR 1 X X X
12 R134465 GASKET 1 X X X
13 15H624 PIPE PLUG 1 X X X 1/2"
14 R134228 STUD 2 X X X
15 14M7299 FLANGE NUT 2 X X X M12
16 RE71102 COMPRESSOR 1 X X X
17 U13639 O-RING 1 X X X
18 R135334 ADAPTER 1 X X X
19 38H5017 ELBOW FITTING 1 X X X
20 RE70322 LINE 1 X X X
21 R126206 FITTING 1 X X X
22 38H5035 ELBOW FITTING 1 X X X
23 T77613 O-RING 1 X X X
24 RE70306 SCREW 2 X X X
25 R135262 COVER 1 X X X
POWERTECH
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 RE500643 OIL LINE 1 X X
2 R63604 FITTING 1 X X
3 R135261 ELBOW FITTING 1 X X
4 15H197 ELBOW FITTING 1 X X 1/8"
5 R126287 ELBOW FITTING 1 X X
6 RE70323 LINE 1 X X
7 38H5003 ADAPTER 1 X X
8 T77857 O-RING 2 X X
9 14H1083 NUT 1 X X 5/8"
10 24H1368 WASHER 1 X X 21/32" X 1-5/16" X 0.090"
11 R120634 GEAR 1 X X
12 R134465 GASKET 1 X X
13 15H624 PIPE PLUG 1 X X 1/2"
14 R134228 STUD 2 X X
15 14M7299 FLANGE NUT 2 X X M12
16 RE71102 COMPRESSOR 1 X X
17 U13639 O-RING 1 X X
18 R135334 ADAPTER 1 X X
19 38H5017 ELBOW FITTING 1 X X
20 RE70322 LINE 1 X X
21 R126206 FITTING 1 X X
22 38H5035 ELBOW FITTING 1 X X
23 T77613 O-RING 1 X X
24 RE70306 SCREW 2 X X
25 R135262 COVER 1 X X
POWERTECH
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 1 REMARKS
1 RE500643 OIL LINE 1 X X
2 R63604 FITTING 1 X X
3 R135261 ELBOW FITTING 1 X X
4 15H197 ELBOW FITTING 1 X X 1/8"
5 R126287 ELBOW FITTING 1 X X
6 RE70323 LINE 1 X X
7 38H5003 ADAPTER 1 X X
8 T77857 O-RING 2 X X
9 14H1083 NUT 1 X X 5/8"
10 24H1368 WASHER 1 X X 21/32" X 1-5/16" X 0.090"
11 R120634 GEAR 1 X X
12 R134465 GASKET 1 X X
13 15H624 PIPE PLUG 1 X X 1/2"
14 R134228 STUD 2 X X
15 14M7299 FLANGE NUT 2 X X M12
16 RE71102 COMPRESSOR 1 X X
17 U13639 O-RING 1 X X
18 R135334 ADAPTER 1 X X
19 38H5017 ELBOW FITTING 1 X X
20 RE70322 LINE 1 X X
21 R126206 FITTING 1 X X
22 38H5035 ELBOW FITTING 1 X X
23 T77613 O-RING 1 X X
24 RE70306 SCREW 2 X X
25 R135262 COVER 1 X X
