John Deere約翰迪爾強鹿柴油機油泵和機油壓力調節閥零件圖冊
詳細描述
機油泵和機油壓力調節閥

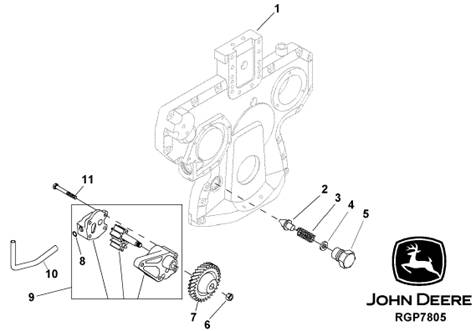

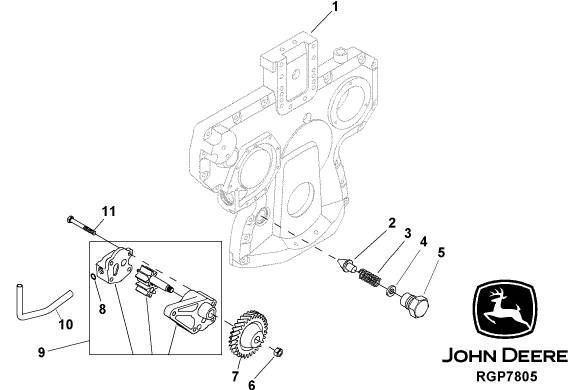

John Deere約翰迪爾強鹿6068 6.8L柴油發動機機油泵和機油壓力調節閥零件圖冊
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 .................. COVER 1 X X X (OPTION 4401, 4403, 4404)
2 R83169 VALVE 1 X X X
3 T27658 SPRING 1 X X X
4 A4827R WASHER 1 X X X
5 R91692 PLUG 1 X X X
6 14M7066 NUT 1 X X X M12
7 R120638 GEAR 1 X X X
8 R97185 O-RING 1 X X X
9 RE504914 OIL PUMP 1 X X X (MARKED R502687) (SUB FOR RE502269
MARKED R123179, RE70153 MARKED
R123179 AND RE59582 MARKED R123179)
10 R121376 TUBE 1 X X X
11 19M8987 SCREW 2 X X X M8 X 65
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 .................. COVER 1 X X X (OPTION 4401, 4403, 4404)
2 R83169 VALVE 1 X X X
3 T27658 SPRING 1 X X X
4 A4827R WASHER 1 X X X
5 R91692 PLUG 1 X X X
6 14M7066 NUT 1 X X X M12
7 R120638 GEAR 1 X X X
8 R97185 O-RING 1 X X X
9 RE504914 OIL PUMP 1 X X X (MARKED R123179) (SUB FOR RE502269
MARKED R123179, RE70153 MARKED
R123179 AND RE59582 MARKED R123179)
10 R121376 TUBE 1 X X X
11 19M8987 SCREW 2 X X X M8 X 65
