停機電磁閥

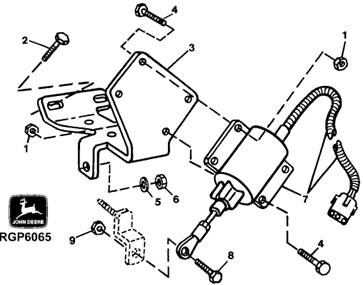

John Deere約翰迪爾強鹿6068  6.8L柴油發動機停機電磁閥零件圖冊

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 14M7303 FLANGE NUT 4 X M6

2 19M7784 SCREW 1 X M10 X 20

3 R132901 BRACKET 1 X

4 19M7862 SCREW 4 X M6 X 20

5 24M7213 WASHER 1 X 10.500 X 25 X 4 MM

6 14M7444 NUT 1 X M10

7 RE502473 SOLENOID 1 X

8 .................. CAP SCREW 1 X

9 .................. NUT 1 X
